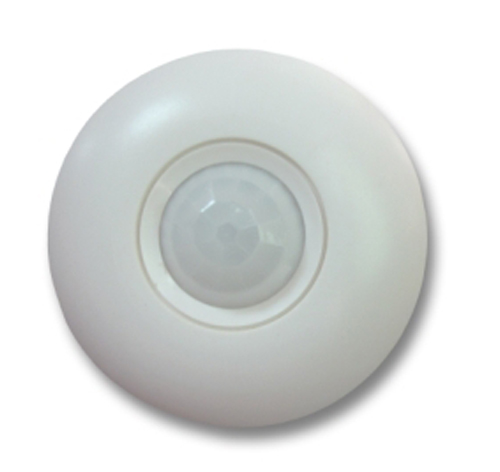

Light control DALI Human detection switch DALI PIR

Detailed

Product：DALI Human detection switch，DALI PIR

Model:CTT-DLPIR

Voltage: DALI bus;

Power consumption:. <=8mA (static)

CDS sensitivity:0Lx ~500Lx +20% (can be set)

Delay time: 0~150 seconds (can be set).

Moving distance measurement: 5m (ambient temperature <24 degrees)

From the angle of measurement: 140 degree conical angle; degrees vertically.

Detection speed: 0.6~1.5m/s

Working temperature: -20-70

Relative temperature: 10-90%

Human detection switch DALI PIR

ABS plastic shell;

Low voltage operation, safe and reliable, no external power supply, only need to access the DALI bus;

In line with the DALI protocol standard in IEC62386; the controller can control any light adjusting device which is in accord with this protocol;

High sensitivity human mobile sensor, high accuracy;

Can realize people to light, people go delay lights;

Can remotely set the trigger brightness and delay values.

Supports 16 arbitrary DALI lamp groups and broadcast mode control;

Supports lighting switches and scene mode control.

Applies to family, office, hotel, engineering, etc.

Classification:Accessories
