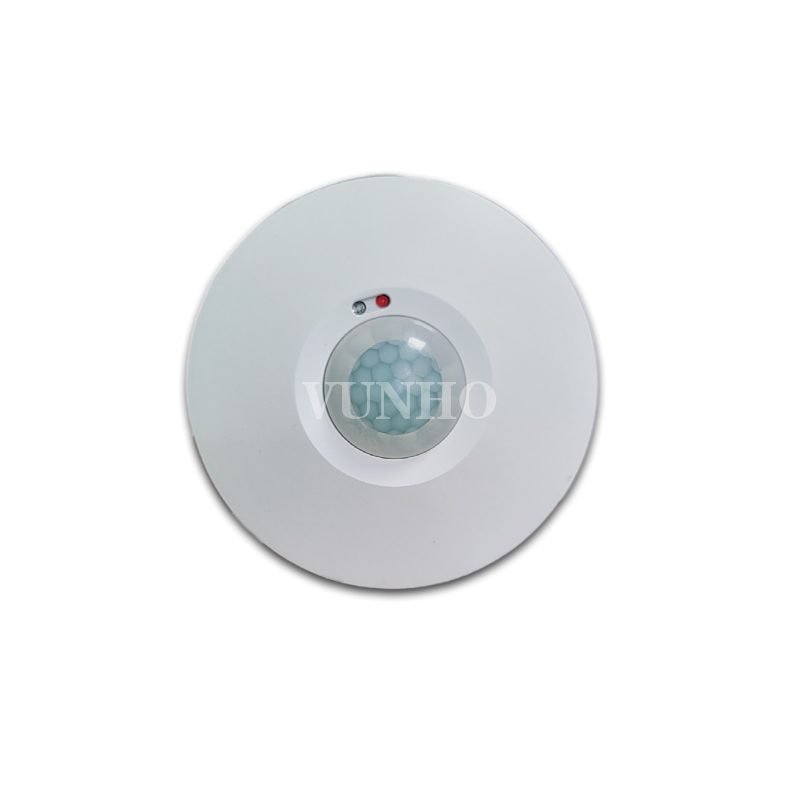

DALI sensor,Infrared Motion detect

ABS plastic shell;

Low voltage operation, safe and reliable, no need for external power supply, just connect to DALI bus;

Compliant with the DALI protocol standard in IEC62386; Can control any dimmer that complies with the protocol;

Adopting highly sensitive human motion sensors with high accuracy;

It is possible to set and execute a brightness value or scene number by humans, and delay the execution of another brightness value or scene number when humans walk;

Can remotely set the triggered brightness/delay value/scene number

Support controlling any 16 DALI light groups and broadcast address lighting fixtures;

Support light switch and scene mode control

Support monitoring scenarios to disable and use features;

Suitable for home, office, hotel, engineering, etc.

Input Voltage: Powered by DALI bus;

power waste:. <=8mA (static)

CDS sensitivity: 0Lx~500Lx+20% (adjustable, factory setting is about 35Lx). (The metering is controlled by a photosensitive CDS, which does not turn on the light during the day or in strong light environments. It can be freely set to turn on the light in any lighting environment. When set to 0Lx, CDS control is disabled.) )

Delay time: 0-150 seconds (adjustable)

Mobile measurement distance: ≤ 5m (when the ambient temperature is less than 24 ℃) (the sensing distance will decrease when the environment is too high, and the sensing distance will be the lowest when the ambient temperature is close to or higher than the human body temperature. After the ambient temperature decreases, it will return to normal)

Measurement angle: 140 cone angle;

Detecting moving speed: 0.6~1.5m/s

Working temperature: -20-50 ℃

Relative temperature: 10-90%
