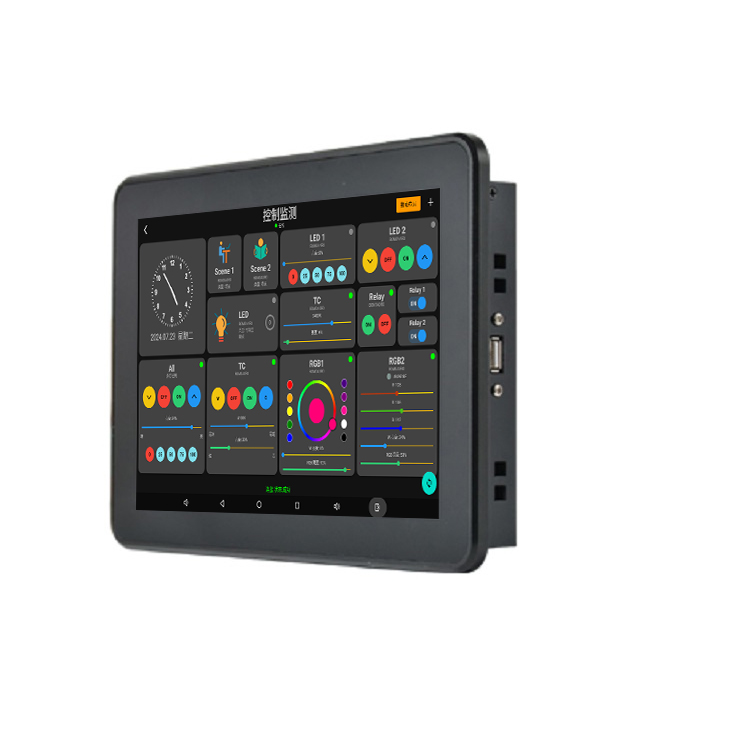

Our company has launched a 10 inch central touch screen, equipped with the Remote IoT 3.0 system control platform, making your control effortless

Product features:

Low power consumption, high reliability, fanless, touch enabled industrial tablet;

Metal shell, front panel made of aluminum alloy plate, with a panel protection level of up to IP68 for the entire machine;

The processor is based on the Cortex A17 Rockchip RK3288 quad core processor, with a main frequency of 1.8GHz;

10.1-inch industrial grade display screen, capacitive touch screen;

Equipped with 2GB of RAM (optional 4GB) as standard, the software runs smoothly

Provide RJ45 gigabit network interface and WIFI wireless connection method;

The panel color is black (other colors can be customized);

Suitable for building automation, commercial lighting and other engineering projects

2. Technical parameters:

Input voltage: DC12V/3A (factory equipped with power adapter AC90~240V 50Hz/60Hz)

power waste:.   <=36W

Display screen: 10.1 "TFT LED

Resolution: 1280 * 800

Brightness: 350cd/m2

Contrast ratio: 800: 1

Touch screen: capacitive touch screen

CPU: Ruixin Micro RK3288 1.8 GHz, quad core processor

Operating memory: standard 2GB (optional 4G)

Wireless: WiFi

Network port: RJ45 Gigabit network interface

Memory: EMMC 8G (optional 16GB, 32GB)

Working temperature: -20 ℃~70 ℃, surface air flow

Storage temperature: -30 ℃~80 ℃

Working humidity: 95% @ 40 ℃, no condensation

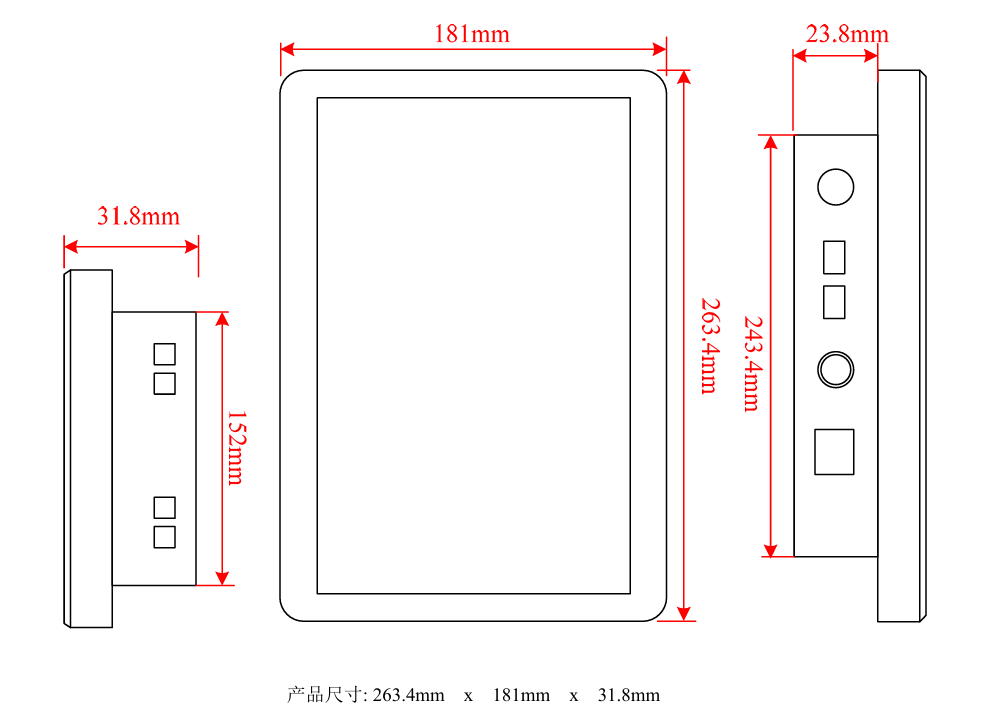

Size: 263.4 millimeters (length) * 181 millimeters (width) * 31.8 millimeters (height)

Material: Aluminum alloy panel design

Installation method: Wall mounted

Weight: 1.4 kg (net weight)

Color: Black
