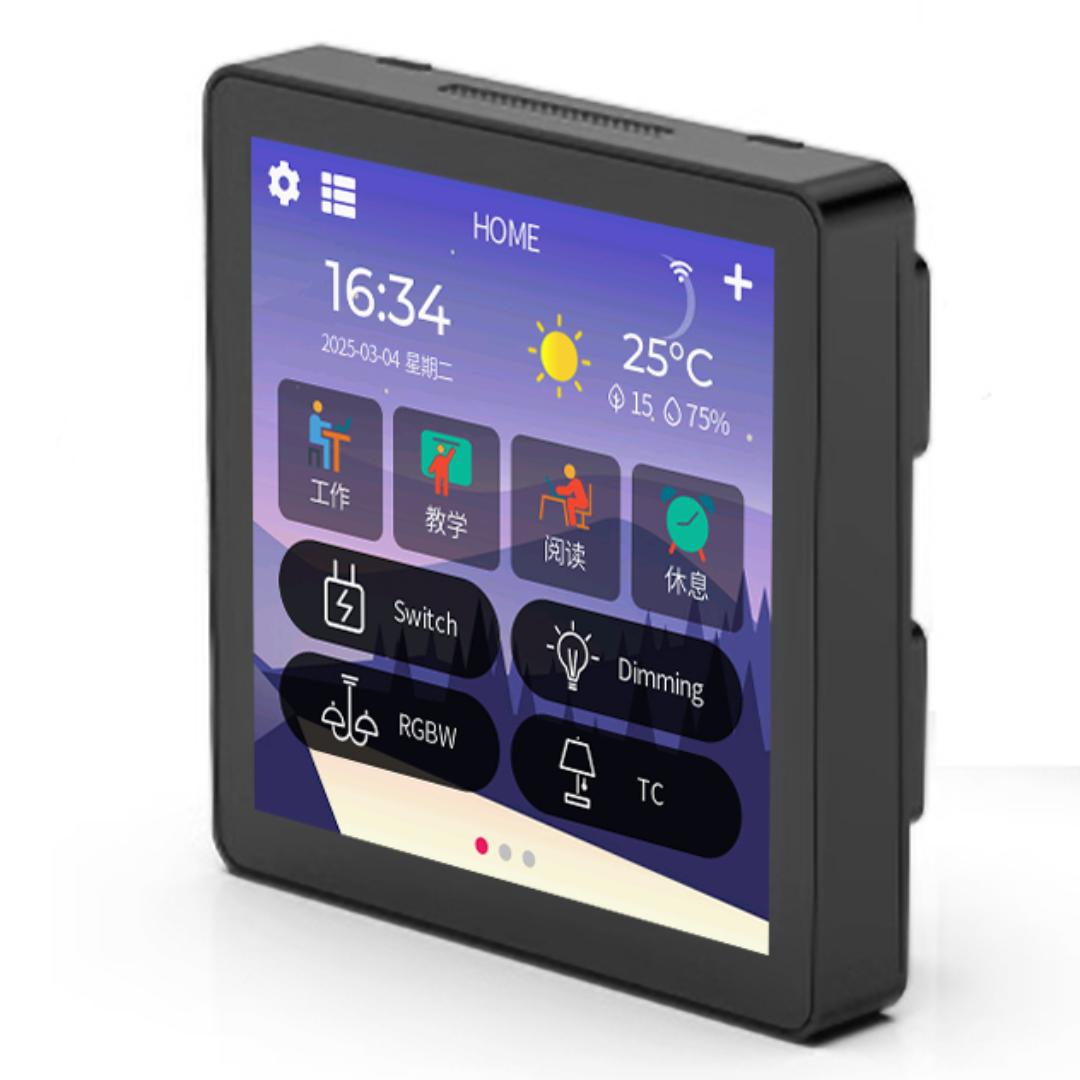

New RS485/DALI multifunctional control screen 4-inch custom LCD touch screen switch panel, with more functions and more flexible design
DALI touch panel

DALI panel
Product features:

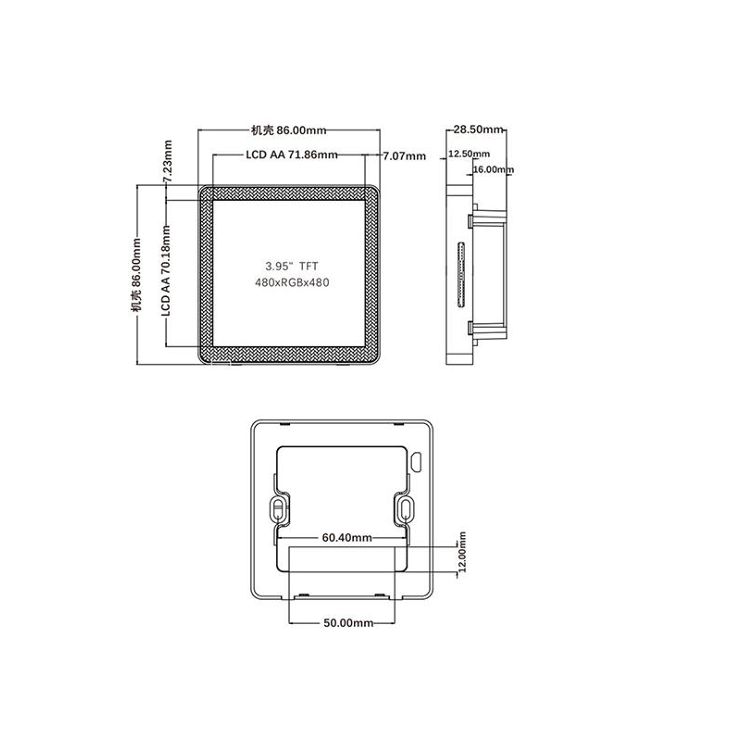

Standard 86 box installation.
Adopting a 16 bit true color 480 * 480 IPS capacitive touch LCD screen with high smoothness.
Equipped with clock function and automatically calibrated when connected to the internet.
It has weather function and covers all regions of the country.
Day/night mode, with multiple theme colors to switch between.
Chinese/English multilingual switching.
Up to 3 pages can be slid and switched, with 16 buttons added to each page.
Support drag layout, buttons can be dragged and placed, arranged freely.
The buttons can be customized to edit size, shape, background color, transparency, text, icons, etc,
Borders, shadows, and so on.
It has WIFI networking function, and after connecting with the mobile app, it can perform operations such as file transfer, data backup, firmware upgrade, etc.
Compliant with the protocol standard IEC62386, it can control any lighting fixture that meets this standard.
Each DALI function button can be customized to implement scene, switch, dimming, color adjustment, and other functions. The 485 function button can be customized with 485 commands and supports ASCII and HEX.
The function of each button can be set through our control system software.

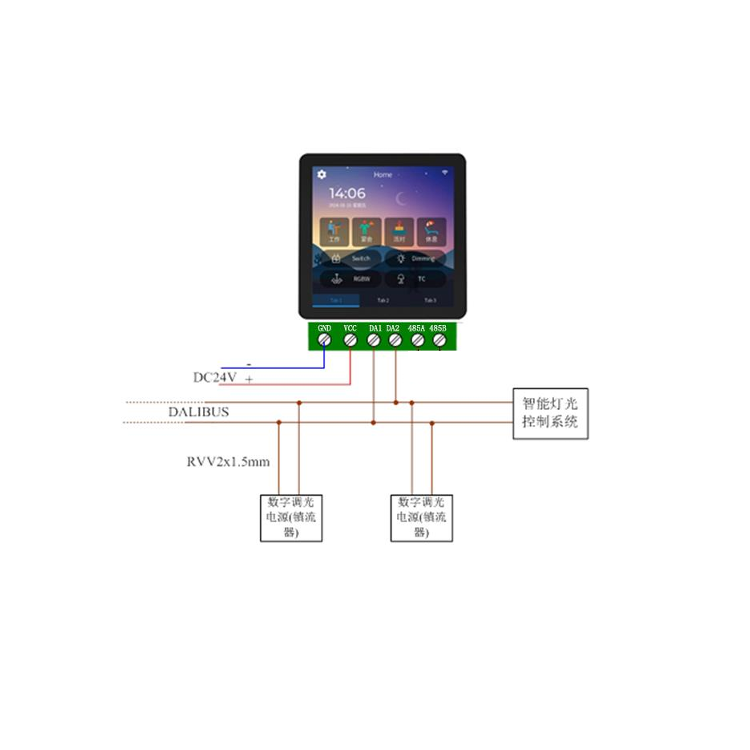

Optional DALI interface or RS485 interface, or both interfaces at the same time.
It can be set to occupy or not occupy DALI bus addresses, and when an address is occupied, it will be automatically assigned by the host.
Suitable for home, office, hotel, engineering, etc.

Touch Screen
Technical parameters:
Power supply voltage: DC 12-24V (no power adapter provided at the factory, self provided). Capacitive touch screens have high requirements for power supply, and excessive electromagnetic interference can cause problems such as inaccurate touch coordinates and false triggering. It is recommended to use power supplies certified by EMC and other standards, and LED power supplies cannot be used
Communication interface: DALI, RS458
Touch type: capacitive touch
Display: IPS LCD
Weight: 150g
Working temperature: -20~70 ℃
Relative temperature: 10-90%
Product selection:
VH-DLTP-4D: DALI interface
VH-DLTP-4R: RS485 interface
VH-DLTP-4DR: DALI interface+RS485 interface
