How to correctly wire and use DALI curtain controller?

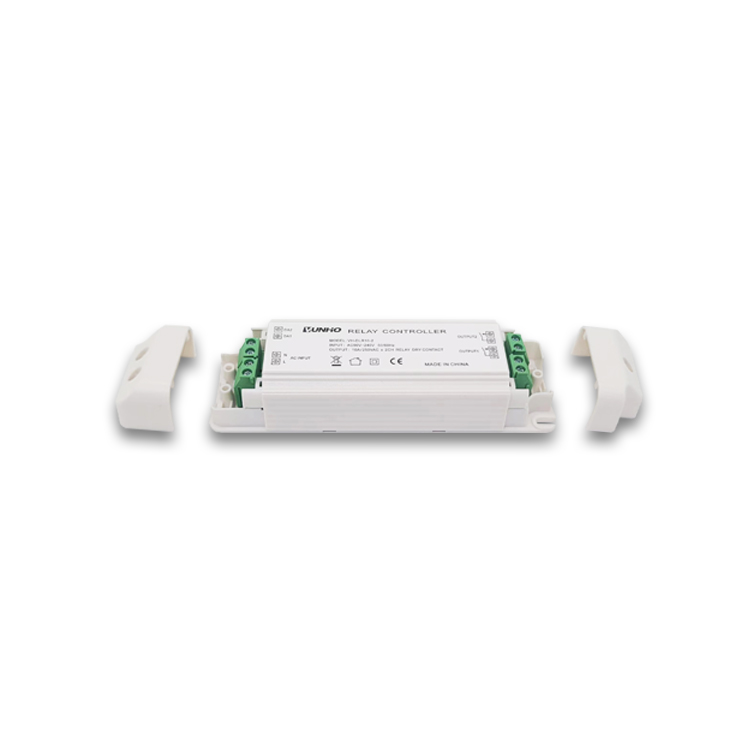

DALI Curtain Controller - Model: VH-DLR10-2C

ABS plastic shell with waterproof cover for terminal protection;

Minimize volume, easy to install and place;

Compliant with the IEC62386 protocol standard; Can be combined with any that meets the requirements

The devices of the protocol are connected to the same bus for control;

Magnetic holding relay 10A/250VAC dry contact output, energy-saving and low heat generation;

Having a single curtain dry contact control logic output, occupying one bus address;

The signal control interface has photoelectric isolation and high-voltage protection functions;

Suitable for home, office, hotel, engineering, etc

DALI curtain controller

Input voltage: AC90~240V 50Hz/60Hz

power waste:.   <=2.5W

Input signal: DALIBUS<2mA (compliant with IEC62386 protocol standard; Can be used with any device that complies with this protocol

Control on the same bus, occupying two bus addresses)

Control level: ON on/OFF off/STOP stop

Relay: 10A/250VAC (magnetic holding relay dry contact output)

Load type: Suitable for curtains/motors with dry contact control (no interlock)

Working temperature: -20 ℃ -50 ℃

Relative temperature: 10-90%

Weight: 130g

DALI controller

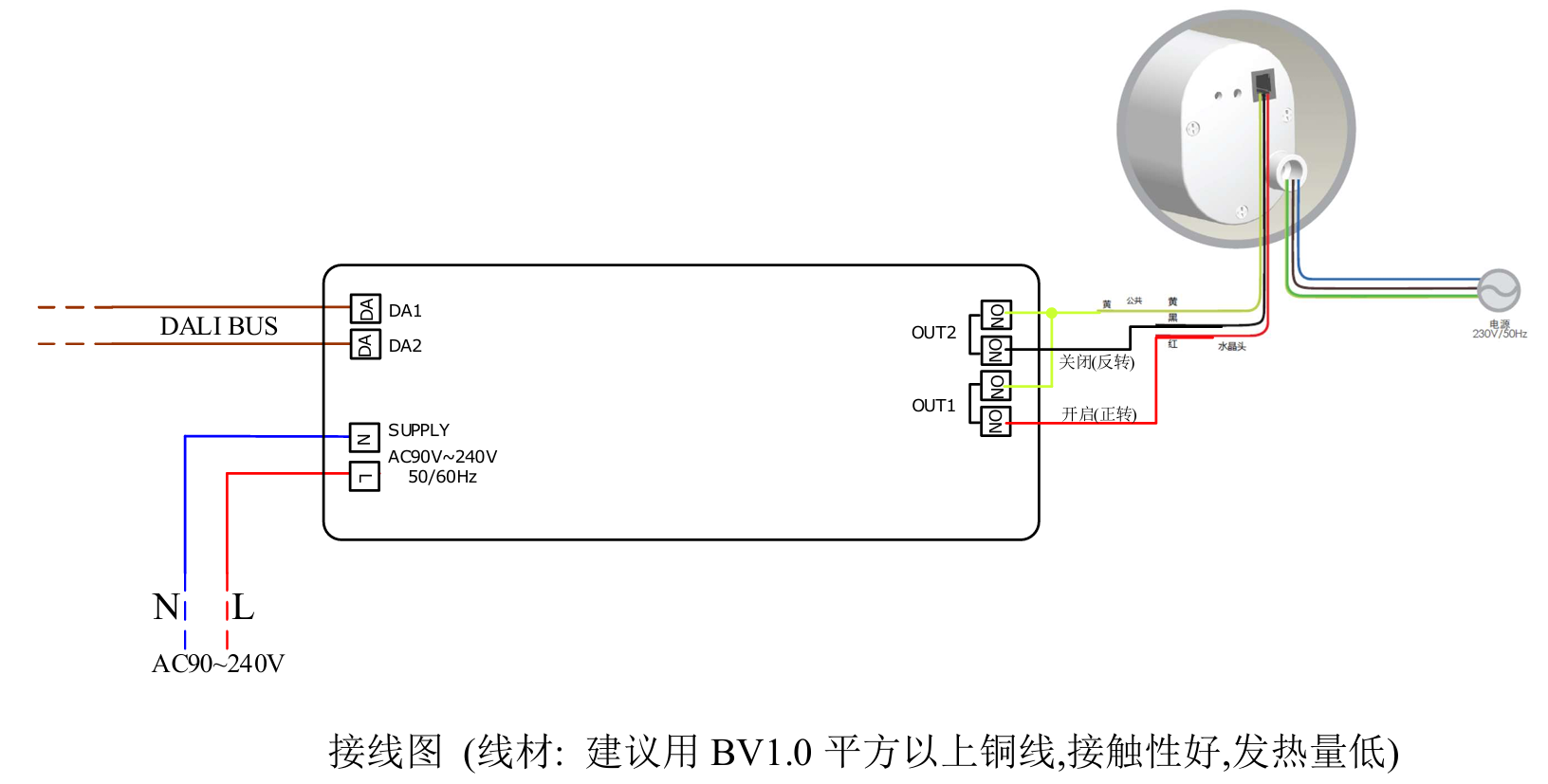

The load of curtains/motors suitable for dry contact signal control cannot achieve interlocking function. The detailed wiring method should be determined based on the curtain/motor circuit, and the control logic of the curtain/motor should be confirmed to meet the requirements. If there are any unclear points, please contact us.
