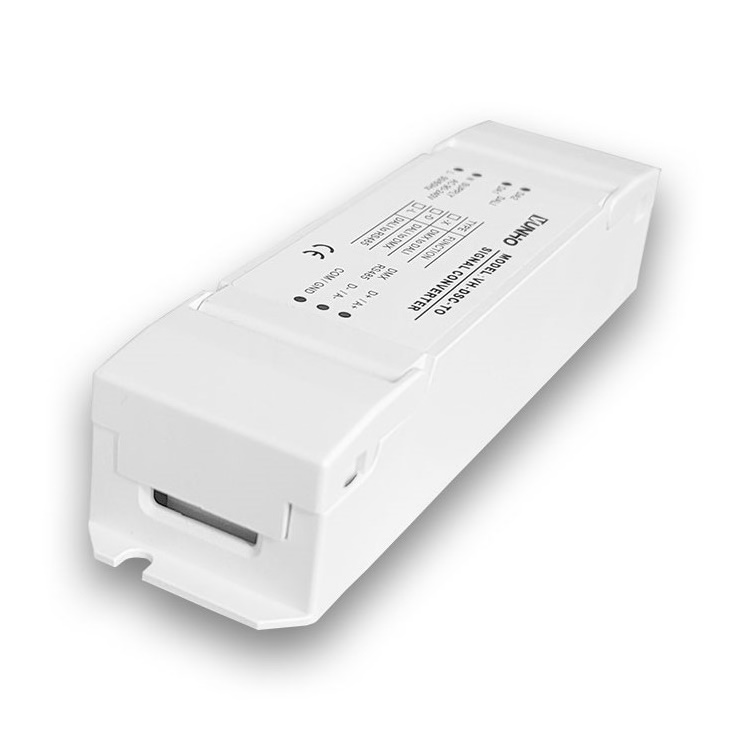

A DALI DT8 RGBW to DMX protocol converter, with DMX512 driver instantly changing to DALI control

 Product Features

ABS plastic shell with terminal protection cover;

Minimize volume, easy to install and place;

Adopting imported high-performance CPU design, low power consumption, stable and reliable performance;

DT8 RGBW standard control signal transparent conversion transmission to DMX512 control signal

Number, automatic conversion of dimming curve;

Occupy 1 DALI address (DT8 RGBW type), convert to occupy 4 addresses

DMX512 address;

The signal communication interface has photoelectric isolation protection function

Good compatibility, can be hung on the same bus with any device that complies with the DALI standard

Line communication control;

Output signal suitable for standard DMX512 signal RGB (W) decoder driver

Commonly used in dimming and color matching lighting engineering, landscape lighting, lighting, stage lighting and other places

Main technical indicators:

Supply voltage: AC90~240V

Power consumption:<=3W

Input signal: DALIBUS<2mA

Dimming level: 254

Dimming range: 0% -100% (0% off, 1% -100% adjustable)

Number of DALI bus addresses occupied: 1 (automatically allocated by the system, DT8 RGBW type)

Output signal: DMX512

DMX512 Address: 4 (RGBW colors correspond to addresses 1, 2, 3, 4)

Working temperature: -20 ℃~75 ℃

Relative humidity: 10-90%

Weight: 100g
