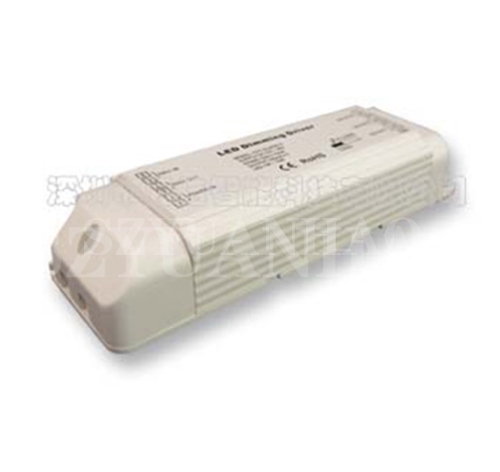

5Ax3 DALI LED Constant voltage dimming driver

Detailed

Product:DALI LED driver,5Ax3 three channel DALI LED Constant voltage dimming driver

Model:CTT-2005-3

Supply power: DC12V ~ 24V

Power consumption: < = 50 mA (static)

Light signal input: DALI, interface absorbance current < 2 mA

Dimmable grade: 255

Dimming range: 0% 100% (0% off, and 1% ~ 100% adjustable)

Output max current: 5A/CH

Output channel: 3

Output power: DC12V ~ 24V (Supply power = Output power)

Address assignment way: To be automatic allocated by DALI host

Working temperature: -20℃ to 75℃

Relative humidity: 10-90%

G.W.: 100g

Constant current DALI Driver

ABS plastic shell, with a terminal blocks protection waterproof cover;

Volume to minimize, easy to install place;

Operate in low voltage, safe and reliable;

Independent three channel output driver optional with max current 5A/CH;

Meet the IEC62386 DALI protocol standards, and share one bus control with any equipment that accord with DALI protocol；

Applicable to family, office, hotel, landscape, billboards engineering, etc.

Classification:Driver
