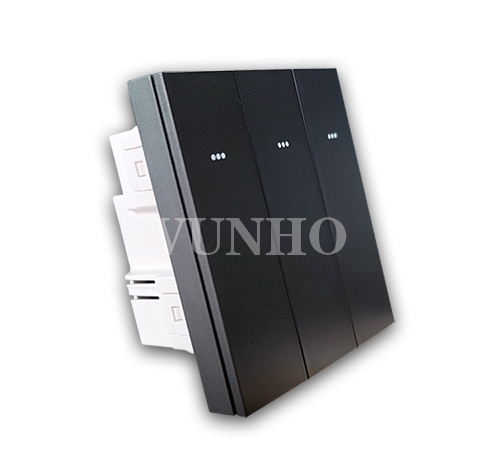

4 Key Switch Panel,DALI light control,With indicator light

ABS plastic shell;

Modular design, small size, easy to install;

Low voltage operation, safe and reliable

Compliant with the IEC62386 protocol standard; Can control any lighting that complies with the protocol;

There are 1/2/3/4/6 buttons to choose from, each button independently controls a target light, and supports remote customization settings;

Equipped with indicator light backlight and status indication function;

Suitable for home, office, hotel, engineering, etc

Power supply: DC12-24V (AC100-240V optional)

Working temperature: 0-70 ℃, relative temperature: 10-90%

By setting the dip switch, it is possible to turn on/off and dim 0-63 single light addresses, 0-15 group addresses, 0-15 scenes, broadcast addresses

Each button has short and long press functions.

Short press: Release within 2 seconds after pressing with your finger to achieve on/off operation Press once to open, release your hand, then press again to close, and so on;

Long press: After pressing with your finger for more than 2 seconds, you can adjust the light up/down. The first long press is to adjust the light up, and after releasing your hand, the second long press is to adjust the light down The range of dimming is between the minimum brightness value and the maximum brightness value parameters.

Provided with 1 key, 2 keys, 3 keys, 4 keys, 6 keys, backlit, indicator light status feedback, customizable, typeable, OEM available.
