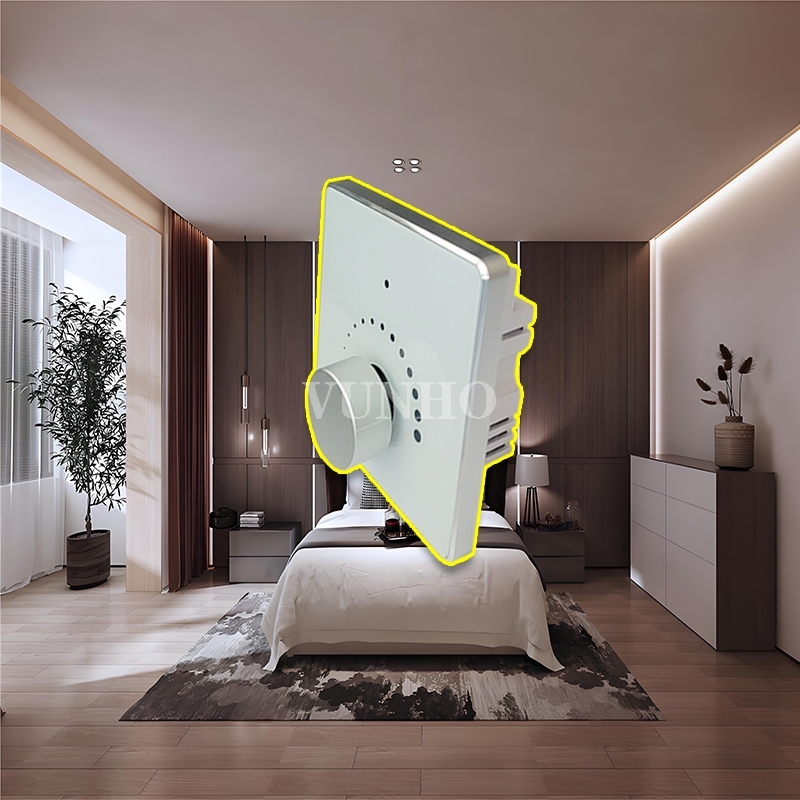

Intelligent lighting control DALI voice control switch

Aluminum shell+tempered glass+ABS plastic shell, standard 86 box installation method;

Compliant with the protocol standards in IEC62386; Can control any dimmer that complies with the protocol;

Adopting high-precision digital encoding rotary switch and ultra-low power chip technology, it is energy-saving, environmentally friendly, wear-resistant and has a long service life;

Simple and fast implementation of light address, light group, broadcasting mode on/off and dimming functions, which can be customized remotely through dialing or software settings;

Equipped with voice recognition control function, voice has self-learning function

Provide dimming and dual color temperature adjustment, single machine and bus type options to adapt to different functional application environments

Suitable for home, office, hotel, engineering, etc

Power supply: AC90~240V 50Hz/60Hz

Dimming range: 0% -100% (0% off, 1% -100% adjustable)

Single machine output bus current: maximum 200mA (with a maximum of 64 connected lights)

Maximum number of speech learning: 100

Maximum distance for voice controlled shouting: 3-5 meters (depending on the environment and the size of the shouting)

Working temperature: 0-70 ℃

Relative temperature: 10-90%

Weight: 150g

In addition to the voice recognition control function, this control switch also provides a manual encoding control mode for rotation, with short press, long press, rotation and other operations.
