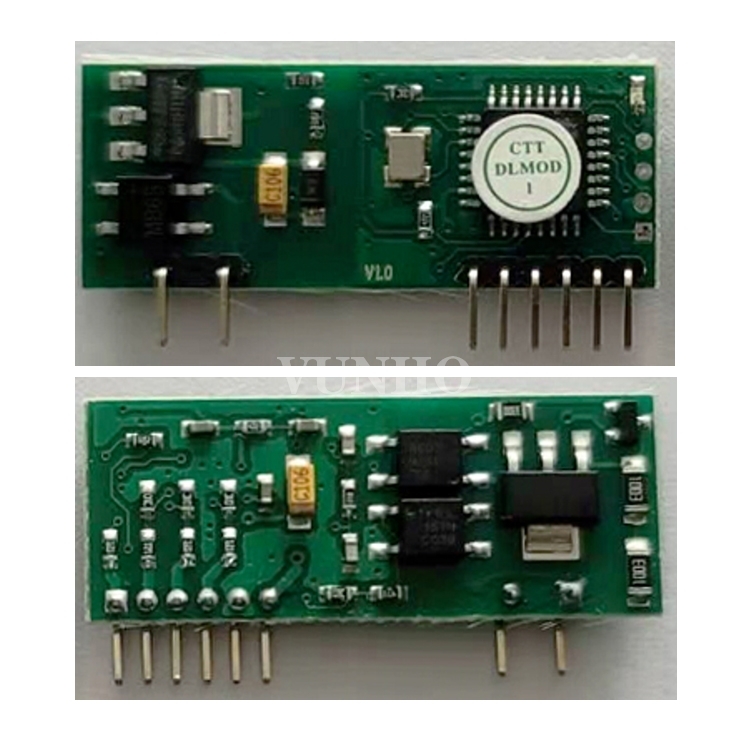

DALI2 Decode Module

Product Features：

¡ Adopting high-performance CPU design, low power consumption, stable and reliable performance.

¡ Modular design, ultra small size, fewer pins, easier integration with LED driver power supply.

¡ Compliant with IEC62386 standard, with good compatibility, designed according to DALI-2 standard, any device that complies with DALI protocol can be connected to the same bus for control.

¡ Attribute type: DT6 (LED dimming), DT8 (color adjustment).

¡ PWM output effective level can be selected to adapt to various driver chips that adjust brightness by PWM, making the design more flexible.

¡ Four types of PWM output module models, suitable for various applications：

¡ Modules can be customized

¡ Suitable for LED dimming drivers with PWM dimming and color adjustment

¡ The signal interface has high voltage protection function

Electrical parameters:

Power supply: DC3.3~5.2V (voltage and current must be stable and reliable, otherwise it may cause abnormal operation of the CPU);

Pin logic level: High level=VCC, Low level=GND

PWM frequency: 500Hz, push-pull output, maximum output current of 10mA;

Dimming range: 0% (off), 1%~100% (on).

LED indicator light: When the module is working normally, the LED heartbeat flashes.
