DALI Sensor /The illumination sensor and human motion sensor

Product：DALI Sensor /The illumination sensor and human motion sensor

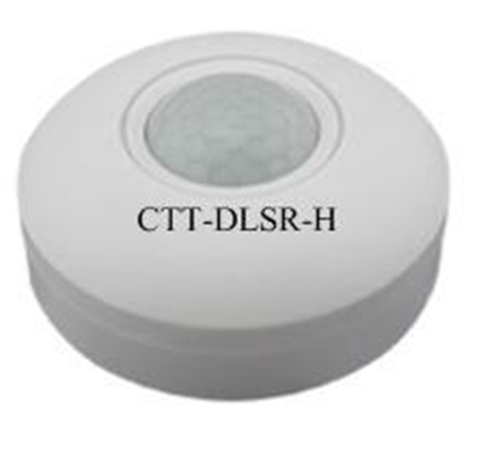

Model:CTT-DLSR-H

voltage: DALI bus to take power;

power: <=8mA (static).

sensitivity: 0Lux ~ 10000Lux

mobile measurement distance: ≤ 5m (ambient temperature <24 ℃ (environment) high induction distance will be reduced, when the ambient temperature is close to or higher than the body temperature sensing distance of the lowest, the ambient temperature is reduced and will return to normal)

measuring angle: H type 140 degree cone angle; T type horizontal 90 degrees，vertical to 60 degrees.

detection speed: 0.6~1.5m/s

working temperature: -20-70 ℃

relative temperature: 10-90%

ABS plastic shell ;

Low-voltage operation , safe and reliable, no external power supply , you only need to access DALI bus ;

Comply with IEC62386 DALI protocol standards ; able to control any dimmer comply with the agreement ;

Illuminance sensors and high-precision human motion sensor , sensitivity and high accuracy ;

Intelligent PID control, offers a variety of operating modes to suit the needs of different environments , applications and more flexible ;

People come lights on, people take lights off, providing two delay control ;

Can automatically adjust the lighting according to the illumination ;

Can achieve balanced illumination control ;

Real-time monitoring can measure indoor illuminance values ;

For home, office, hotel , and engineering .

The DALI protocol sensor with 7 operating modes to suit the needs of different environments.

Mode 1 Motion sensor detection,person to open a fixed brightness, Leave execution delay setting brightness.

Mode 2 Motion sensor detection,person to open the corresponding brightness according to the ambient brightness calculations leave execute delay setting brightness.

Mode 3 Motion sensor is disabled , indoor lighting illumination sensor automatically adjusts according to the outdoor illumination , does not automatically turn on / off lights.

Mode 4 Motion sensor is disabled , indoor lighting illumination sensor automatically adjusts according to the outdoor illumination ,according to the set threshold automatically turn on / off lights.

Mode 5 Motion sensor is disabled , fixed illumination control , when the lights turn on automatically adjust the illumination to the set , you can not automatically turn on / off lights.

Mode 6 Motion sensor is disabled , fixed illumination control , when the lights turn on automatically adjust the illumination to the set , according to the set threshold automatically turn on / off lights.

Mode 7 Motion sensor detection and fixed illumination control , turn on the lights after people come and automatically adjust the illumination to the value given , leave to execution delay setting brightness.

  Please see the specification of the software is provided with patterns or consulting our related personnel.
