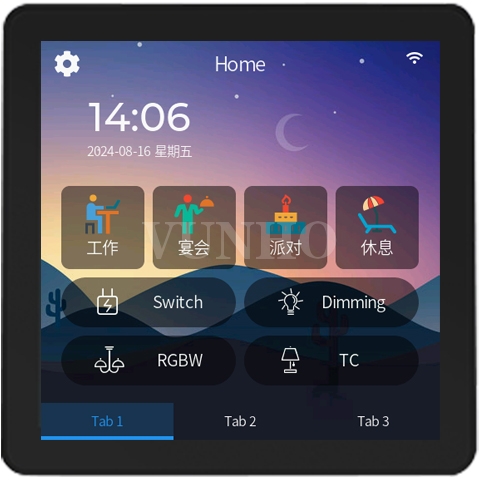

DALI touch pannel

Standard 86 box installation;

Adopting a 16 bit true color 480 * 480 IPS LCD display screen, capacitive touch, high smoothness;

Equipped with clock function;

Equipped with network weather function;

Day/night mode, multiple theme color switching;

Chinese/English language switching;

Supports up to 3 pages, can be switched by sliding,

Add up to 16 buttons per page;

The buttons can be dragged on the page to change their position and layout freely;

The buttons can be used to edit size, shape, background color, transparency, text, icons, borders, shadows, and more;

Equipped with WIFI function, it can calibrate time online, and after connecting with a mobile app, it can exchange files, backup data, upgrade firmware, and more.

Compliant with the protocol standards in IEC62386; Can control any lighting fixtures that meet this standard;

Each button can be customized to achieve functions such as scene, switch, dimming, color adjustment, etc;

You can customize the function of each button through our control system software or directly set it on the LCD interface;

Optional DALI interface or RS485 interface, or both interfaces at the same time.

Can be set to occupy or not occupy DALI bus addresses, and when an address is occupied, it will be automatically assigned by the host;

Suitable for home, office, hotel, engineering, etc.

Provide different functional versions and model choices：

Power supply voltage: AC100-250V(High voltage power supply version)

Communication interface: DALI, RS458 (optional)

Touch type: capacitive touch

Display: IPS LCD

Weight: 150g

Working temperature: -20~70 ℃

Relative temperature: 10-90%
