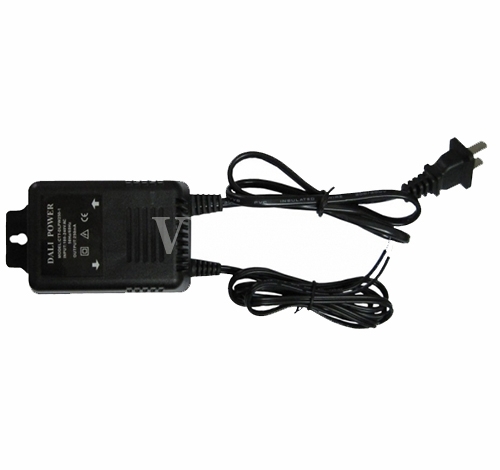

DALI Bus Power,DALI PS,DALI POWER

.Technical parameters:

Input voltage: 100-240VAC 50Hz/60Hz

Maximum power: 10W

Compliant with IEC62386 international standard.

Output bus current: 250mA

Equipped with overcurrent/short circuit/overvoltage protection.

Indicator light: normally green light, red light during overcurrent/short circuit (Note: Overcurrent or short circuit should be avoided for a long time, otherwise it may easily damage the power supply.)

Industrial grade design, stronger electromagnetic compatibility and anti-interference ability.

Working temperature: -20 ℃ -75 ℃

Relative temperature: 10-90%

Note: Each DALI bus is only allowed to connect up to one DALI POWER. DALI power output wiring does not need to distinguish polarity.

Installation precautions:

1). Please disconnect the power supply of all devices on the DALI bus before installation.

2). Connect the mains power and DALI bus according to the wiring diagram. The DALI bus does not distinguish between the positive and negative poles of the power supply.

3). A suitable self tapping screw (such as 4x16 self tapping screw) can be used to fix it in the installation cabinet or parallel to it.

4). Please double check if the circuit is connected correctly before powering on.

Note: A maximum of one DALI POWER is allowed to be connected to a DALI bus, otherwise communication may be abnormal and even damage other devices on the DALI bus Before installation, please confirm whether there is a DALI power supply on the DALI bus (when there is a power supply on the DALI bus, the voltage between the two lines is DC9.5V~22V, default is DC16V)
