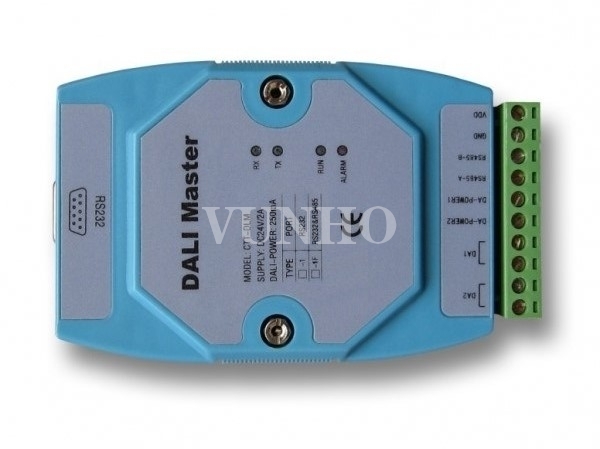

DALI Master

Equipped with USB and RS232 communication interfaces (RS232 is an optional feature).

Supports a digital addressable lighting bus, allowing up to 64 lighting devices to be connected.

Scan devices,Compliant with international standard IEC62386 and national standard GBT30104 protocol automatic address allocation requirements, with three address allocation methods.

It can achieve broadcast control, group control, or single address for devices.

Support switch control/dimming control/color adjustment control.

Can achieve group setting/reading.

Can achieve scene value setting/reading.

Equipped with timing control timetable function, realizing timed (cyclic) scene changes.

 It has addressing function.

 Reserved protocol debugging command interface.

Equipped with a bus power supply PS independent output interface, the compatibility is more flexible.

The software supports switch between Chinese and English interfaces.

Support Software: Dalitools

Model: CTT-Dalitools

System Platform: Windows XP/Vista/WIN7/WIN8/WIN10

Computer: X86 or compatible, Pentium 1G Or higher

Memory (RAM): 2G or higher

Hard disk space: 100GB or higher

Communication interface: USB/RS232

Supporting controller: CTT-DLM-1 type controller,Up to one controller can be connected

Control the number of lights: up to 64 addresses

Function introduction: Used for developing and debugging products that comply with the IEC62386 standard, featuring automatic addressing and parameterization

Number setting, grouping, scene setting, dimming and color control, status monitoring, timing control, time

Sequence control, etc.
