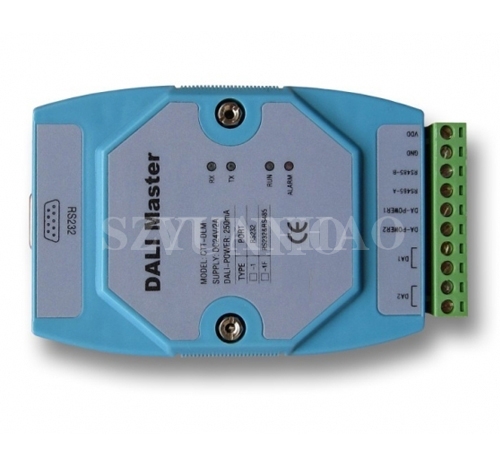

DALI tools controller DALI Master CTT-DLM-1

Product：DALI Master RS232 to DALI DALI Tools
Model: CTT-DLM-1
Supply: 24 V / 2 A
Power:. < = 10 W
DALI power output: 250 mA
The communication interface: RS232 ,USB
DALI device driver ability: 64 DALI address
Working temperature 20 ℃ ~ 75:-℃
Relative humidity: 10 to 90%
Weight: 100 g
PC software: DALI Tools

Function details:
now algorithm analysis and complexity theory, the software design tools, parallel programming, the DALI bus at up to 64 sets of equipment hanging, also contains 16 group and 16, and have DuoGe scene can be set the parameters of the function, i

s the parameter setting use DALI application more flexible, more easily adapt to different occasions demand. DALI and to realize the parameters set up the lamps and lanterns to have a DALI host to complete, we therefore developed CTT-DLM-type 1 DALI host, and has the friendly DALI Tools software, powerful, widely used in lighting project, debugging use.
Ø scanning equipment, DALI agreement with automatic address assignment requirements with three distribution address way;
Ø can be used for broadcasting equipment, group or single address control operation;
Ø can set/read DALI agreement in all the parameters parameter table;
Ø can realize group setting/read;
Ø can realize scene value is set/read;
Ø has sequential control function, achieve timing schedule (circulation) scene change;
Ø has addressed function;
Ø obligate DALI agreement. Debugging command
Ø communication interface with RS232 or USB;
Ø has DALI POWER independent output interface, compatibility more flexible.

　　If your computer did not provide RS232 serial ports, we can give a high quality USB to RS232 serial port equipment, in order to better use DALIMaster convenient.
