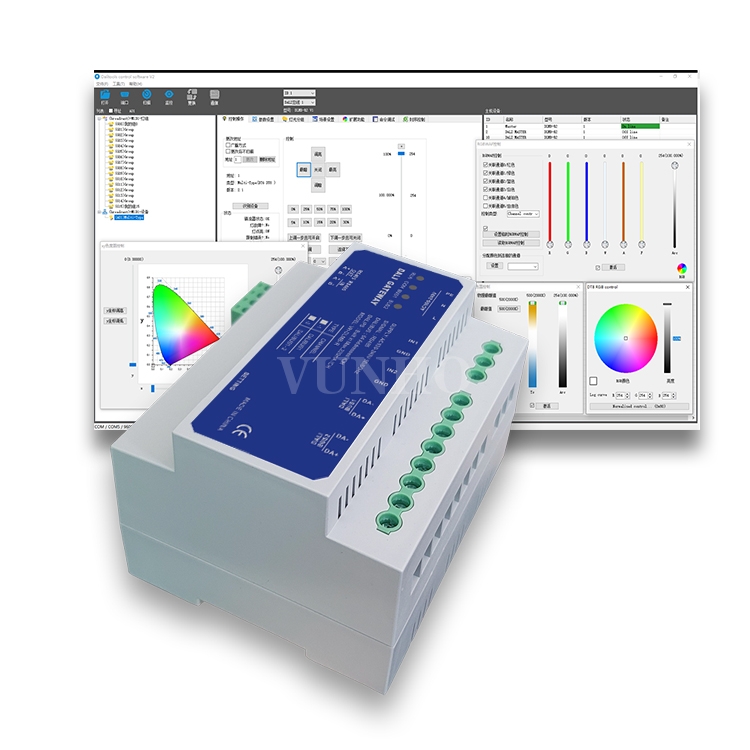

Dual DALI master integrated gateway

Supply voltage: AC AC100-240V 50Hz/60Hz

power waste:.   <=12W

Input signal: RS485 bus

Modbus address: 0 broadcast, 1-247 slave address, 248-254 reserved

Output signal: DALI bus (up to 64 addresses per DALI bus)

DALI addresses: a total of 128 slave addresses, DALIBUS1：0-63；

DALIBUS2： 0-63

Communication distance: RS485 bus: 1200 meters;

DALI bus: 300 meters (1.5mm wire)

DALIPS: Built in DALIPS power supply function, maximum 200mA per DALI bus

Working temperature: -20~70 ℃

Relative humidity: 10-90%

Weight: 200g

Adopting a universal industrial grade RS485 bus, the baud rate and speed can be set to adapt to more third-party system interfaces

Our company provides Dalitools debugging software for engineering project debugging, which is convenient and fast for assigning addresses, setting parameters, grouping, setting scenes, etc. for DALI lights

Equipped with one or two DALI bus control outputs, capable of managing 128 DALI lights of 64 or 64 * 2;

Dalitools software supports DT0, DT5, DT6, DT7, and DT8, among which DT8 supports CCT dual color temperature, Xy chromaticity diagram, PN channel control, RGBWAF multi-color control;

Support configuration software, HMI, PLC and other third-party systems to control DALI single lights, light groups, broadcast address dimming control, scene control, dual color temperature/RGBW/xy color control, light status query and other operations through RS485 bus Modbus RTU protocol.

Built in DALIPS bus power supply function, with a maximum total output of 200mA bus current per line;

Supports 35mm rail installation

Dalitools is a free Windows system computer controlled DALI lighting debugging software provided by our company. It has complete functions, is simple and easy to use, and can be directly connected to this gateway controller for debugging and use in lighting engineering. For more information on using Dalitools, please refer to the Dalitools software user manual.

The DALI digital addressable bus complies with the requirements of the international IEC62386 standard V2 version

For detailed instructions on Modbus RTU, please refer to the definitions and relevant specifications of the Modbus RTU protocol frame structure files

This host can connect multiple controllers to form a network through RS485 industrial group bus to control more DALI lights
