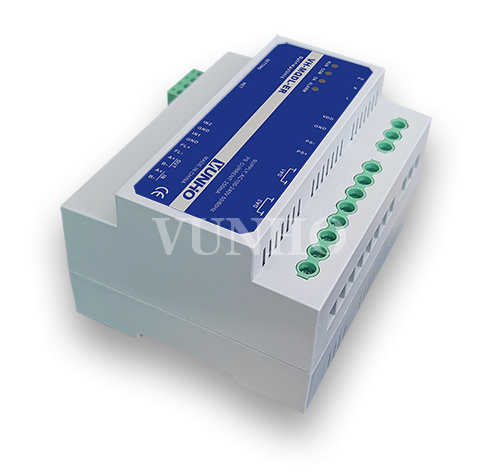

MQTT to DALI Gateway,WeChat Mini Program Control

Input voltage: AC100-240VAC 50/60Hz

power waste:.   <=10W

Ethernet interface: 10M/100M adaptive, serving as a Modbus TCP server, supporting up to 4 TCP client access points; Simultaneously implement remote control and monitoring functions for WeChat mini programs.

RS485 interface: can be selected as Modbus RTU master or Modbus RTU slave, and also has Modbus protocol routing function. Modbus TCP data interacts with Modbus RTU data.

Dalibus interface: Supports connecting up to 64 slave devices.

Bus power supply output: 250mA

Working temperature: -20 ℃~75 ℃

Relative humidity: 10-90%

Weight: 150g

One Ethernet 100M/10M adaptive communication interface, supporting 4 Modbus TCP client access terminals;

Adopting MODBUS industrial bus communication protocol, providing open protocol for direct integration with existing control systems;

One RS485 bus serves as the Modbus RTU routing extension interface;

Equipped with a DALI bus control output, capable of managing 64 DALI address devices;

Contains three address allocation algorithms that comply with the automatic address allocation requirements of the DALI protocol;

Capable of broadcasting, group or single address control operations on devices;

Can set/read parameters from the DALI protocol parameter table;

Can achieve group setting/reading;

Can achieve scene value setting/reading;

Equipped with an independent bus supply power output interface, the compatibility is more flexible;

Support direct Modbus docking and control of configuration software, HMI, and PLC devices;

Provide a one week timer function, built-in high-precision clock, and offline timer control;

Provide four timing table control functions, each table can be pre installed with 32 pieces of change information.

Support cloud remote control and monitoring of mini programs

Supports 35mm rail installation.
