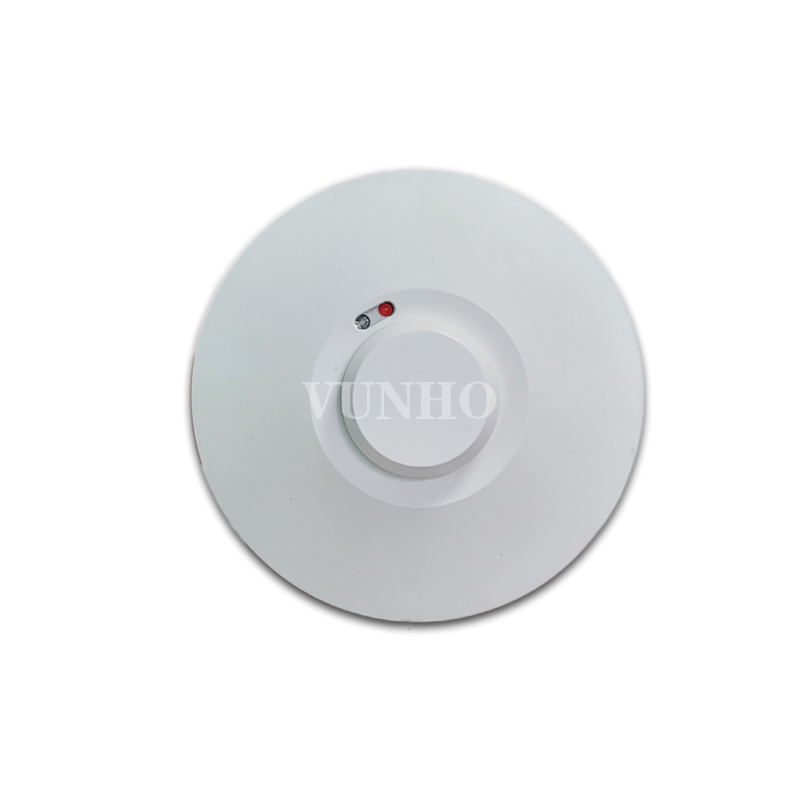

DALI microwave human body sensor,static detection

ABS plastic shell;

Compliant with the DALI protocol standard in IEC62386; Can control any dimmer that complies with the protocol;

Adopting highly sensitive human motion sensors with high accuracy;

It is possible to set and execute a brightness value or scene number by humans, and delay the execution of another brightness value or scene number when humans walk;

Can remotely set the triggered brightness/delay value/scene number

Support controlling any 16 DALI light groups and broadcast address lighting fixtures;

Support light switch and scene mode control

Support monitoring scenarios to disable and use features;

Suitable for home, office, hotel, engineering, etc.

Input voltage: AC100-240V

Power consumption:<2W

Detection method: Microwave 24GHz

Mobile detection distance: Moving human body ≤ 5m; Micro moving human body ≤ 4m; Sitting human body ≤ 3m

CDS sensitivity: 0Lx~500Lx+20% (adjustable, factory setting is about 35Lx). (The metering is controlled by a photosensitive CDS, which does not turn on the light during the day or in strong light environments. It can be freely set to turn on the light in any lighting environment. When set to 0Lx, CDS control is disabled.) )

Delay time: 0-150 seconds (adjustable)

Measurement angle: 120 cone angle;

Detecting moving speed: 0.01~1m/s

Working temperature: -20-50 ℃

Relative temperature: 10-90%
