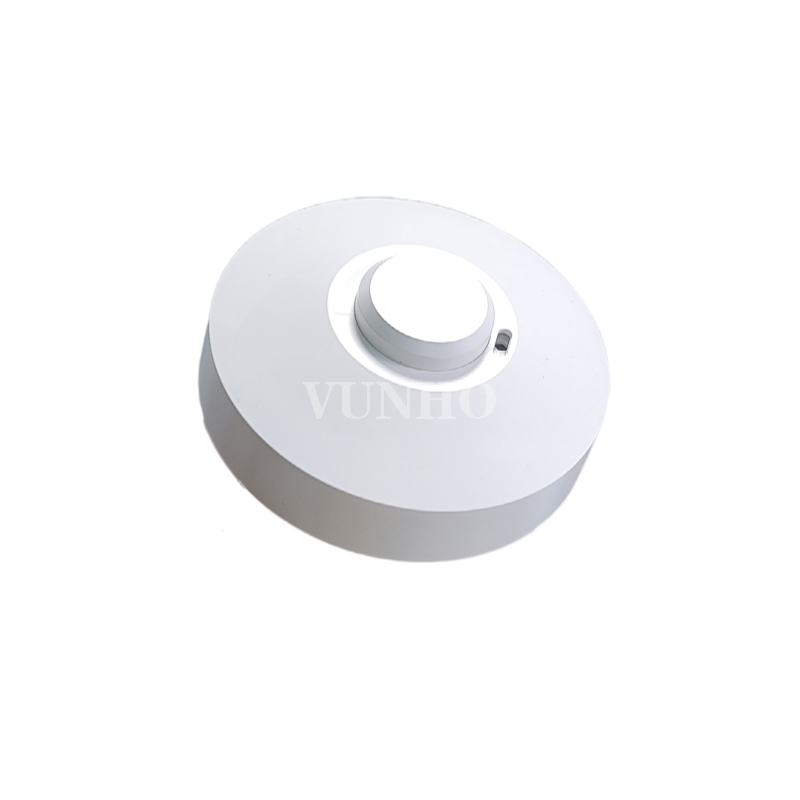

RS485 Human Body Presence Sensor

It is possible to enable humans to set and execute one status instruction, and for humans to delay the execution of another status instruction;

Can remotely set the triggered brightness/delay time

Support active or passive state triggering;

Support active encoding to trigger sending instructions;

Can query detection status and CDS sensitivity

Support monitoring scenarios to disable and use features;

Suitable for home, office, hotel, engineering, etc.

Input Voltage: AC100-240V;

Power consumption: 2W

CDS sensitivity: 0Lx~500Lx+20% (adjustable, factory setting is about 35Lx). (The metering is controlled by a photosensitive CDS, which does not turn on the light during the day or in strong light environments. It can be freely set to turn on the light in any lighting environment. When set to 0Lx, CDS control is disabled.) )

Delay time: 0-250 seconds (adjustable)

Mobile measurement distance: ≤ 5m (when the ambient temperature is less than 24 ℃) (the sensing distance will decrease when the environment is too high, and the sensing distance will be the lowest when the ambient temperature is close to or higher than the human body temperature. After the ambient temperature decreases, it will return to normal)

Measurement angle: 140 cone angle;

Detecting moving speed: 0.6~1.5m/s

Working temperature: -20-50 ℃

Relative temperature: 10-90%
