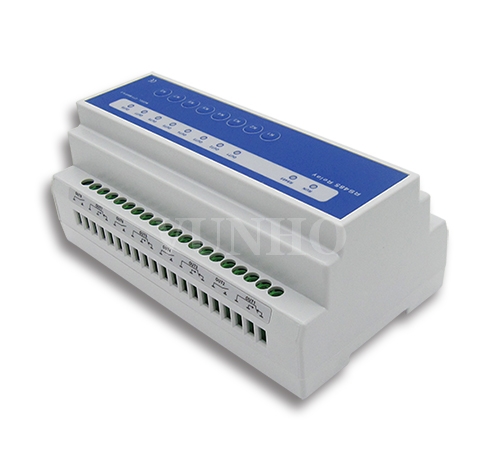

Product Name:8 channels RS485 MODBUS relay 16A/250VAC x8
Model: ctt-mbr16-8
Input voltage: DC24 / 1A
Power: < 10W
Input interface: RS485
Relay: 8-way max.16a resistive load or max.10a inductive load
Product size: 160mm x 90mm x 65mm
Working temperature: - 20 ～ 70 ℃
Relative humidity: 10-90%
Weight: 500g
8channels RS485 MODBUS relay 16A/250VAC x8
Adopt 32 bit low power consumption high speed CPU;
100M / 10m adaptive Ethernet interface;
8 independent relay outputs, including 4 outputs including normally open and normally closed terminals, which can realize interlocking control function;
Each relay has its own manual control function, which can control the maximum 16A resistive load or the maximum 10A inductive load;
Have timing control and timing control functions;
Group and scene functions;
Equipped with key manual operation;
Support fire signal voltage input emergency lighting;
Support on-line remote fixed upgrade, convenient engineering power customization, upgrade and update functions without removing the equipment;
Communication protocol can be provided for integration of third-party system;
Standard 35mm international guide rail installation;
