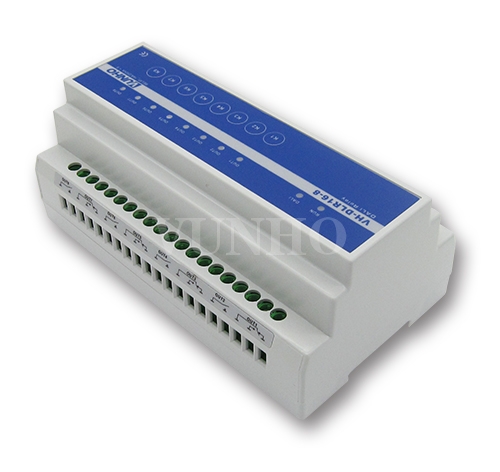

Product:8 channel DALI relay 16A/250VAC *8
Model: VH-DLR16-8
Input voltage: DC24V/2A
Power dissipation: <=24W
Input signal: DALI does not distinguish polarity (conforms to the DALI protocol standard in IEC62386; can be connected with any device conforming to the DALI protocol with a bus control)
Relay control: 16A/250VAC X8, (resistive load maximum 16A or inductive load maximum 10A)
Operating temperature: -20 DEG C, -75 DEG C
Relative temperature: 10-90%
Weight: 110g
Conforms to the DALI protocol standard in IEC62386. It can be connected with any DALI protocol device with a bus control;
DALI communication interface has isolation protection function
With 8 channel relay, resistive load maximum 16A or inductive load maximum 10A;
Inductive device such as controllable motor;
You can choose to take up 1-8 DALI addresses
Guide type installation
Apply to family, office, hotel, engineering, etc.
