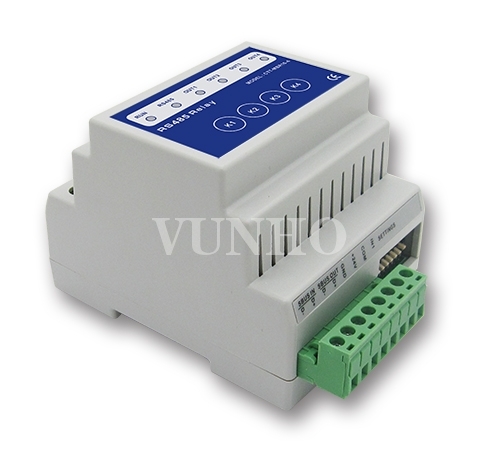

four channels modbus relay controller 16A/250VACx4

Product Name: four channels modbus relay controller 16A/250VACx4

Model: ctt-mbr16-4

Input voltage: DC24 / 1A

Power: < 10W

Input interface: RS485

Relay: 4-way do (max.16a resistive load or max.10a inductive load)

Product size: 160mm x 90mm x 65mm

Working temperature: - 20 ～ 70 ℃

Relative humidity: 10-90%

Weight: 500g

four channels modbus relay controller 16A/250VACx4

Adopt 32 bit low power consumption high speed CPU;

Industrial RS485 interface, with a maximum distance of 1200 meters;

There are 4 independent relay outputs, including 4 outputs with normally open and normally closed terminals, which can realize the interlock control function;

Each relay has its own manual control function, which can control the maximum 16A resistive load or the maximum 10A inductive load;

Have timing control and timing control functions;

Group and scene functions;

Equipped with key manual operation;

Support fire signal voltage input emergency lighting;

Support on-line remote fixed upgrade, convenient engineering power customization, upgrade and update functions without removing the equipment;

Communication protocol can be provided for integration of the third-party system;

Standard 35mm international guide rail installation;
