RS485 modbus infrared learning transponder

Detailed

Product Name: RS485 modbus infrared learning transponder

Model: ctt-linf-r

Voltage: DC12V ~ 24V;;

Power consumption:. < = 0.5 (static), < = 5W (emission)

Launch angle: 360 degrees

Control distance: > 10m

Working temperature: - 20-70 ℃

Relative temperature: 10-90%

Ctt-linf-r RS485 bus interface Modbus RTU protocol

Note: ctt-linf-r can provide communication protocol for integration of third party system

Learning infrared transponder

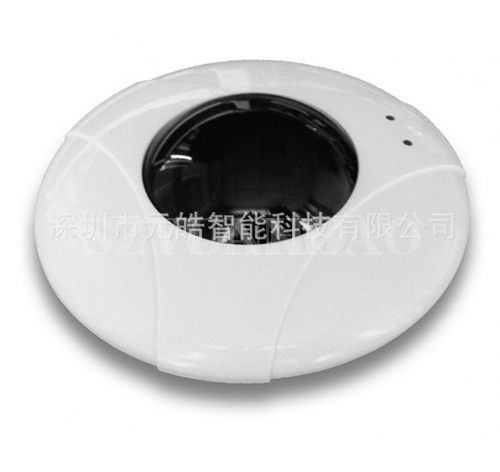

ABS plastic shell, fashionable and beautiful appearance;

Support ceiling mounted, low pressure operation, safe and reliable;

The hardware equipment adopts RS485 as the transmission bus, with photoelectric isolation, and the distance can reach 1200 meters;

It conforms to the Modbus RTU protocol specification, supports multiple devices on a bus, up to 247

Can learn any remote control coding, each group of coding learning length up to 200 bytes;

The built-in coding memory can store up to 100 groups of learning data without power loss;

360 degree infrared emission, no dead angle, maximum control distance up to 10 meters;

Suitable for indoor home, office, hotel, engineering, etc. lighting control, electrical control
