DALI to 0/1-10 V including relay switch

Detailed

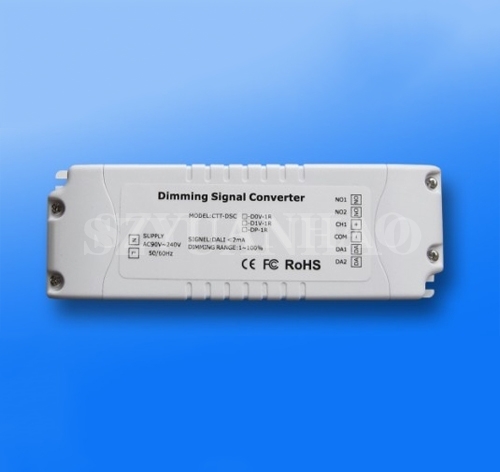

Product：DALI signal converter,DALI to 0/1-10 V including relay switch

Model:CTT-DSC-D1V-1R

Input voltage: AC90 ~ 240 V 50 Hz ac / 60 Hz

Power consumption:. < = 5 W

Input signal: DALI (accord with IEC62386 DALI in agreement with any accord with standard; DALI agreement with equipment to put up a bus control)

Light level: 255

Dimming range: 0% 100%

Output signal: 0/1-10V (reverse current)

Relay switch: 5A

Working temperature: 75 ℃, 20 ℃-

Relative temperature: 10 to 90%

Weight: 110 g

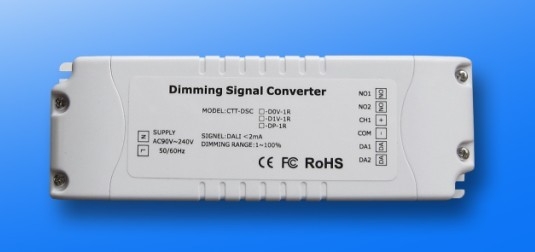

DALI to 0/1-10V relay switch

1. The product features:

Ø ABS plastic shell, and with a terminal blocks protection waterproof cover;

Ø volume to minimize, placed easy installation;

Ø IEC62386 DALI agreement in accord with standard; But with any accord with the DALI agreement with equipment to put up a bus control;

Ø with 1 road 0-10V output and 1 road relay switching output

Ø DALI communication interface with isolation protection function

Ø applicable to family, office, hotel, and engineering.

Classification:Converter
