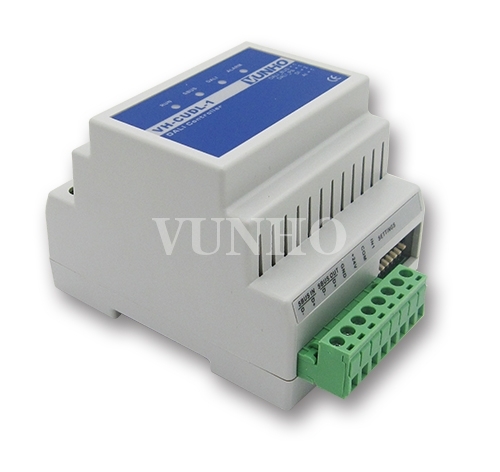

Product:SmartIoT DALI controller
Model CTT-CUDL-1
Voltage DC24V (with adapter)
Power <10W
Input interface SBUG
Output interface DALI
communication distance DALI:300M
Driving ability 64 DALI gear
Size 117mm x 72mm x 26mm
Working temperature -20~70℃
Operating temperature 10-90%
Weight 150g

SmartDALI system networking products
With SmartBUS bus and DALI bus data exchange function;
Can manage 64 Dali Gear;
The built-in DALI PS function;
Have 4 Sequence control function;
SmartDALI Lighting control system product features
Hardware equipment classification management, using Ethernet and SBUS (Smart Bus)
bus transmission, photoelectric isolation, distance 1200 meters;
Most can connect 48pcs managers, each manager can connect 96pcs controller,
each controller can connect 64pcs DALI Gears, a total of more than 290000 Dali Gears to be controlled
Be scanning equipment, automatic address assignment protocol conforming to DALI
requirements, with three assigned address mode;
Can realize broadcast to equipment, group or single address control operation;
Can set all parameters read / DALI protocol parameters in the table;
Can Lighting group set / read;
Can Lighting Scene set / read;
With addressing function;
Having a gateway state monitoring function;
Brightness and state monitoring function is with light;
Timing control function is one year cycle, to achieve timing lights / scene change;
Be arbitrary input and output points with associated control;
Is the system work independent control, can close or withdrawal of computersoftware settings.
