DALI tools lighting control system

Product：DALI Tools lighting control system

Model:CTT-DALI Tools

DALI Tools lighting control system

Software: DALI Tools lighting control system

Maximum number of control lights:64

Controller: CTT-DLM-1 DALI Master(64 address)

Connection interface with computer:RS232 / USB

Communication distance RS232/USB：15M；

Communication distance DALI：300 M ( Can add DALI repeater to extend the distance )

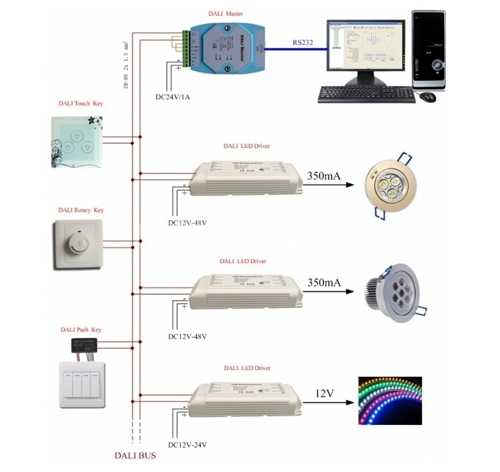

How to build DALI intelligent lighting control system

http://www.szyuanhao.com/view.php?id=354

DALI Tools lighting control system

Ø with RS232 and USB communication interface (USB for optional features).

Ø support a DALI bus, most allow linking 64 DALI lighting equipment

Ø scanning equipment, conform to the requirements of the DALI protocol automatically assigned, has three distribution address mode;

Ø can realize to radio equipment, group or single address control operation;

Ø can set/read the DALI protocol all parameters in the parameter list;

Ø can realize grouping set/read;

Ø scenario can be set/read;

Ø schedule sequential control function, to achieve timing (loop) scene change;

Ø addressing function;

Ø reserved DALI protocol debugging commands.

Ø with DALI POWER independent output interface, compatibility is more flexible.

Ø Software support Chinese English language interface.

Applicable to DALI lighting products research and development, commissioning, demonstration, engineering application
