Smart DALI lighting control system

Product：Smart DALI lighting control system

Software:Smart DALIfor PC  and Smart DALI for Android  APP

Maximum number of control lights:290000

Connection interface with computer:Ethernet / WIFI

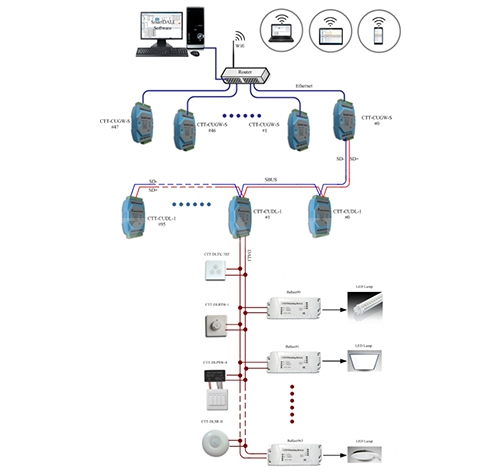

Controller :CTT-CUGW-S LinkUnit and CTT-CUDL-1 ControlUnit,LinkUnit managing  ControlUnit , Each  ControllerUnit output 64 address .

Communication distance:Ethernet Distance is no limit ( Can add HUB);SBUS 1200M;DALI 300M(Can add DALI repeater to extend the distance)

Extensions funtion:LinkUnit and ControlUnit all can be expanded .LinkUnit can be extended to a maximum of 47pcs, one for each extension , you can up to connect 96pcs ControlUnit; Each extension one ControlUnit can output address 64pcs lights.

Cross- bus control function:Yes  (Our production input resources devices)

Phone/Pad control function:Yes (Android system)

Smart DALI lighting control system

Wifi DALI lighting control system

Level 1 expansion bus

Ø Adopts Ethernet communication interface.

Ø Use eBUS for secondary expansion bus;

Ø Can control up to more than 130000 separate DALI lighting equipment;

Ø Gateway condition monitoring function;

Ø With functions of the brightness of the lights and condition monitoring;

Ø DALI ballast automatically assigned address function, IEC62386 standard requirements;

Ø Can realize to broadcasting, each lighting group or single address control operation;

Ø Can set/read the parameters in the light;

Ø Can realize grouping set/read;

Ø Scenario can be set/read;

Ø Cycle timing control has a week schedule function, implementation timing lights/scene change;

Ø Support android system Wifi Pad/ phone controls ;

Apply to DALI lighting engineering application

Supply PC software and phone app.
