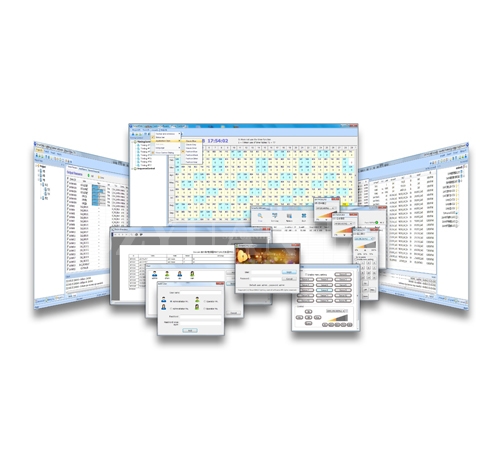

Smart DALI software

Product:Smart DALI software

Model:CTT-Smart DALI

Apply:Smart DALI Lighting control system

The minimum requirements for computer configuration
Operating system：Windows 2000/XP/Vista/WIN7
Computer : X86 or compatible , Pentium 2G or higher
Memory ( RAM ) : 1G or higher
Hard disk space : 10G or higher
With Ethernet interface.

 Hardware equipment classification management, using Ethernet and SBUS bus
transmission, photoelectric isolation, distance 1200 meters;
 Most can connect 48pcs managers, each manager can connect 96pcs controller, each controller
can connect 64pcs DALI Gears, a total of more than 290000 Dali Gears to be controlled
 Be scanning equipment, automatic address assignment protocol conforming to DALI
requirements, with three assigned address mode;
 Can realize broadcast to equipment, group or single address control operation;
 Can set all parameters read / DALI protocol parameters in the table;
 Can Lighting group set / read;
 Can Lighting Scene set / read;
 With addressing function;
 Having a gateway state monitoring function;
 Brightness and state monitoring function is with light;
 Timing control function is one year cycle, to achieve timing lights / scene change;
 Be arbitrary input and output points with associated control;
 Is the system work independent control, can close or withdrawal of computersoftware settings.
