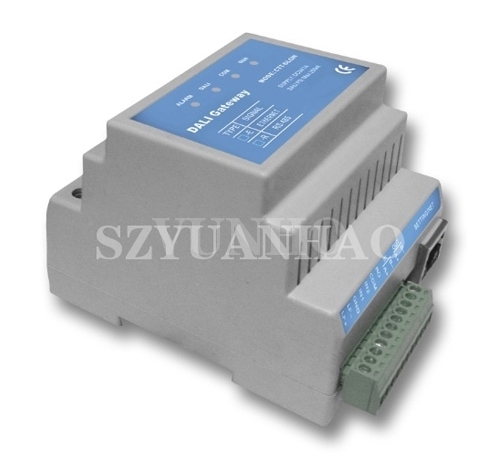

Modbus-TCP to DALI gateway TCP/IP to DALI

Product：DALI Gateway Modbus-TCP IP/TCP to DALI

Model: CTT-DLGW-E

Power supply voltage: 24V/1A

Power consumption:. <=10W

DALI power output: 250mA

Communication mode: 100M/10M Ethernet

The number of access points: 5 TCP client

Working temperature: -20 degrees ~75 degrees

Relative humidity: 10-90%

Weight: 150g

With a DALI bus control output, can manage 64 DALI address device;

Containing three kinds of distribution address algorithm, in accordance with the DALI protocol automatic address allocation requirements;

Can be realized on the device broadcast, group or single address control operation;

Can set / read parameters in the DALI protocol parameter table;

Packet setting / reading;

Scene values set / read;

With independent POWER DALI output interface, compatibility is more flexible;

Compatible with 100M/10M Ethernet communication.

The MODBUS industrial bus communication protocol is adopted to provide the open protocol directly and the integration of the existing control system;

With the field commissioning switch and lock switch, engineering installation and debugging more convenient;

Can be realized with the EasyDALI software platform expansion, associated control;

Support 35mm guide rail type installation.
