Smart Education Lighting Control System

The smart education lighting control system is a system launched by our company that utilizes technologies such as IoT automatic control to intelligently manage school education lighting.

The focus of the smart education lighting control system is to provide students with a healthier and more comfortable lighting environment, while achieving the goals of energy conservation and environmental protection.

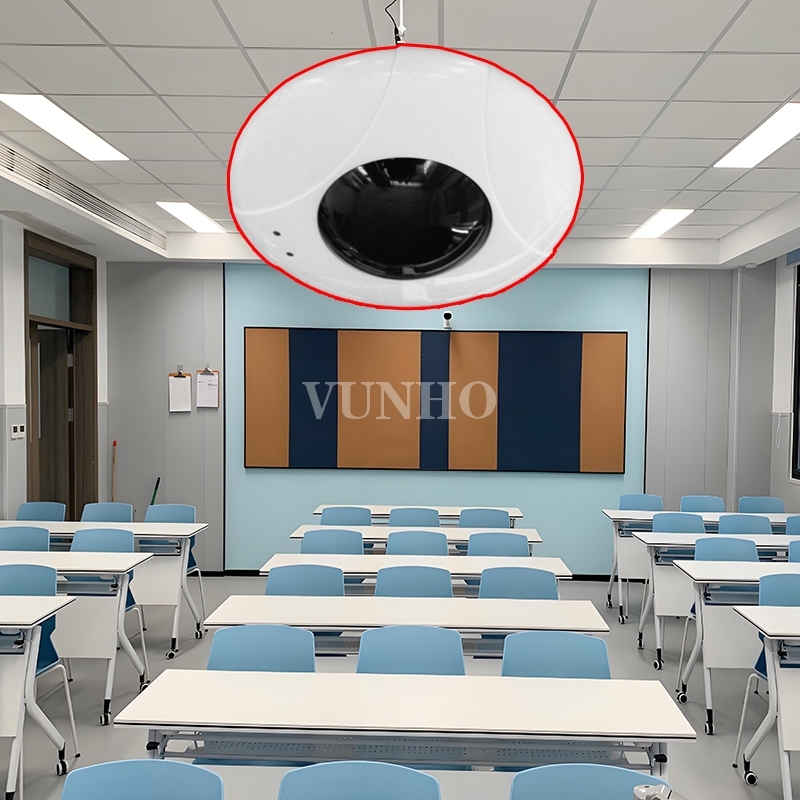

On the basis of using LED lighting to save energy, further reduce energy consumption through intelligent system management. Automatically adjust the brightness of the lights according to the environmental illumination, using a brightness sensor. When the outdoor light is strong, the system will automatically weaken or turn off the lights near the window, and adjust the brightness of the lights near the wall according to the wall sensor; When the outdoor light weakens, the sensor will adjust the brightness of the light to the pre-set illuminance value based on the sensing signal. At the same time, it can be used in conjunction with human body sensing to control the lights. People can control the lights, and when people leave, the lights will turn off (dim).

Supports multiple signals such as DALI, 0-10V, DMX, etc. to control various types of lighting fixtures with dimming, color and temperature control functions, such as LED light strips, bulbs, etc., to adjust light color and intensity.

Supports single point, multi-point, area, and group control, with preset scenes and control panel to achieve functions such as timed switching and brightness adjustment. In class mode, the classroom lights will automatically adjust to 100% brightness and turn on the blackboard lights; Set the self-study mode to 100% brightness and turn off the blackboard lights; When the projector is turned on in projection mode, the classroom lights automatically dim to 50% brightness and turn off the blackboard lights; In activity mode, all lighting fixtures are turned on and adjusted to 70% brightness; The constant illumination mode automatically adjusts the brightness based on the actual lighting effect.

It supports the linkage of Chinese and British air conditioners, projectors and other devices, and can self-learning the data code of these devices with remote control for centralized control and scene linkage.

Supports secondary development and customization, and can be integrated with other IoT systems, hardware devices, and other applications.
