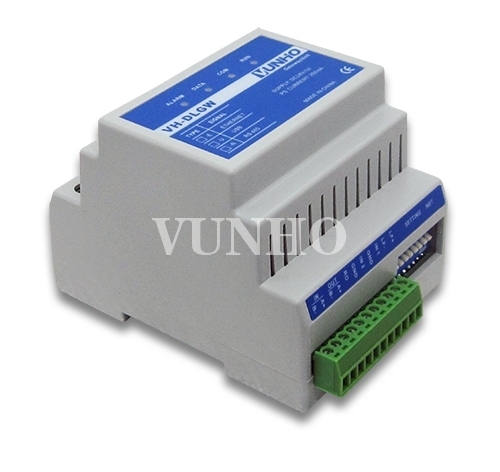

RS485 to DALI Gateway Controller

Model: VH-DLGW-R

Voltage: DC24V/1A (factory default adapter)

power waste:.   <=10W

Input signal: RS485

Output signal: Dalibus

PS output: Max 250mA, independent interface

Working temperature: -20~70 ℃

Relative humidity: 10-90%

Weight: 150g

Equipped with a digital addressable lighting interface bus control output, capable of managing 64 address devices;

Comply with IEC62386 and GBT30104 standards, support DT6 monochrome and DT8 dual color temperature/RGBW color control functions

Contains three address allocation algorithms that meet the automatic address allocation requirements of this protocol;

Capable of broadcasting, group or single address control operations on devices;

Can set/read parameters from the parameter table;

Can achieve group setting/reading;

Can achieve scene value setting/reading;

Equipped with an independent bus supply power output interface, the compatibility is more flexible;

The RS485 interface has photoelectric isolation and lightning protection;

Provide open protocols for direct integration with existing control systems, supporting configuration software, HMI, and PLC devices for direct Modbus RTU docking control;

Provide a one week timer function, built-in high-precision clock, and offline timer control;

Provide four timing table control functions, each table can be pre installed with 32 pieces of change information.

Supports 35mm rail installation.
