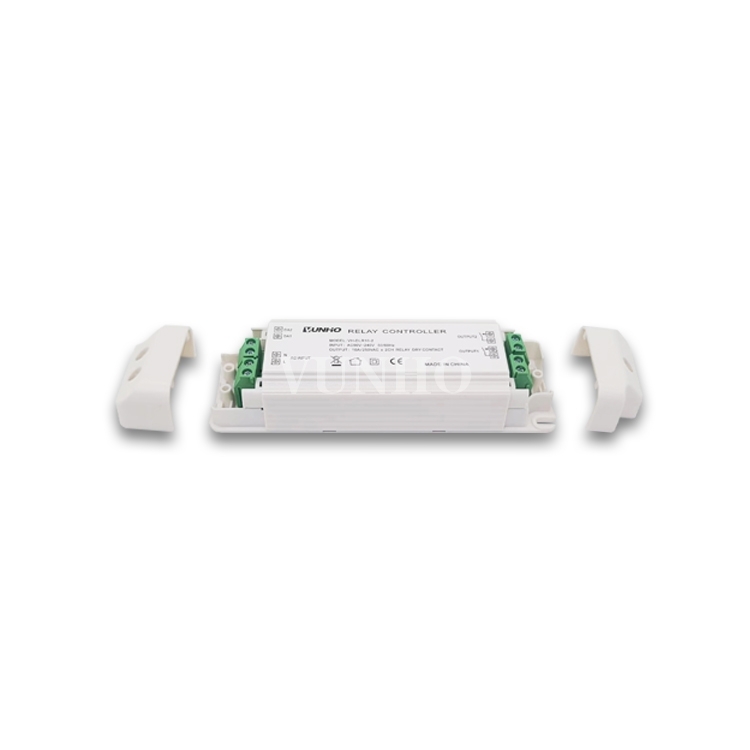

ABS plastic shell with waterproof cover for terminal protection;
Minimize volume, easy to install and place;
Compliant with the IEC62386 protocol standard; Can be connected to the same bus control as any device that complies with the protocol;
Magnetic holding relay 10A/250VAC dry contact output, energy-saving and low heat generation;
Having a single curtain dry contact control logic output, occupying one bus address;
The signal control interface has photoelectric isolation and high-voltage protection functions;
Suitable for home, office, hotel, engineering, etc.
Technical Parameter:
Input voltage: AC90~240V 50Hz/60Hz
Power consumption: <=2.5W
Input signal: DALIBUS<2mA (compliant with IEC62386 protocol standard; Can be connected to the same bus control as any device that complies with the protocol, occupying 2 bus addresses
Control level: ON on/OFF off/STOP stop
Relay: 10A/250VAC (magnetic holding relay dry contact output)
Load type: Suitable for curtains/motors with dry contact control (no interlock)
Working temperature: -20 ℃ -50 ℃
Relative temperature: 10-90%
Weight: 130g
