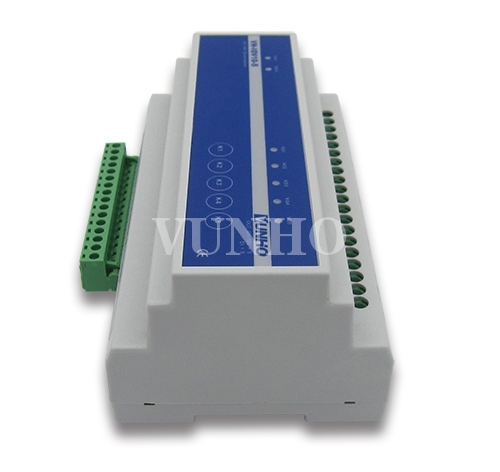

Product: SmartIoT 8 channels 16A Relay controller

Model: VH-IOR16-8

Input voltage: DC24/1A

Power: <10W

Input interface: Ethernet

Output interface: SBUS, RS485

Relay: 8  channels  Max.16A resistive load or Max.10A inductive load

Input: DI (dry contact signal or DC voltage 5V~36V signal)

Product size: 160mm, x, 90mm, x65mm

Operating temperature: -20 ~ 70 DEG C

Relative humidity: 10-90%

Weight: 500g

The use of 32bit low power high-speed CPU;

The 100M/10M adaptive Ethernet interface;

The 8  channels relay output, which has 4 road with normally open and normally closed output, can realize interlocking control function;

Is each relay with manual control function, can control the maximum 16A resistive load or inductive load maximum 10A;

The 8 DI signal input, support dry contact signal or DC signal voltage 5V~36V;

The timing control and timing control function;

The scene with packet and function;

To support remote online upgrade fixed, custom power engineering is convenient, without removing the device that can upgrade capabilities;

The fire linkage interface with signal.

The international standard 35mm installation guide way;
