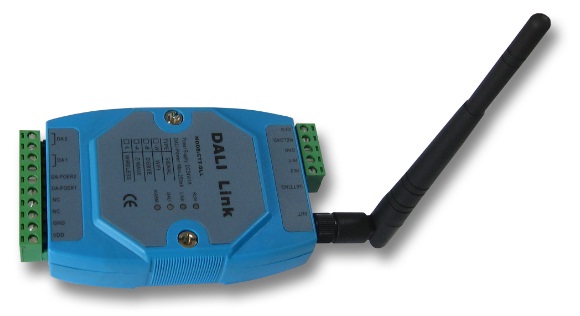

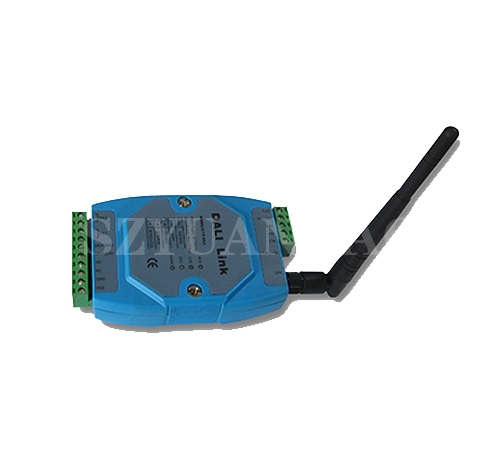

Product：DALI Link WIFI Controller CTT-DLL-W

Model:CTT-DLL-W

Voltage: DC24V

Power consumption: < 10 w
Wireless: WIFI

DALI:300 meters
Product size 117 mm x 72 mm x 26 mm
Working temperature - 20 ~ 70 ℃
10-90% relative humidity
The weight of 100 g

Using WIFI connection phone/pad;

Support a DALI bus, allowed to connect 64 DALI lighting equipment

Support within four controller network that can extend the control at most 256 DALI lighting.

Equipped with a mobile phone/pad DALI Link APP software, support up to 32 phone/pad access control at the same time.

Scanning equipment, conform to the requirements of the DALI protocol automatically assigned, has three assigned address;

With functions of addressing;

Can realize to broadcast, group or single address control operation;

You can set/read DALI protocol parameters all the parameters in the table;

Can realize grouping set/read;

Can realize scene set/read;

With functions of timing control;

Has four independent sequential control function.

Support the white light, double color, RGB lamp dimming toning, scene custom control mode.

Compatibility with DALI POWER independent output interface, more flexible.

Support in both Chinese and English interface switching.
