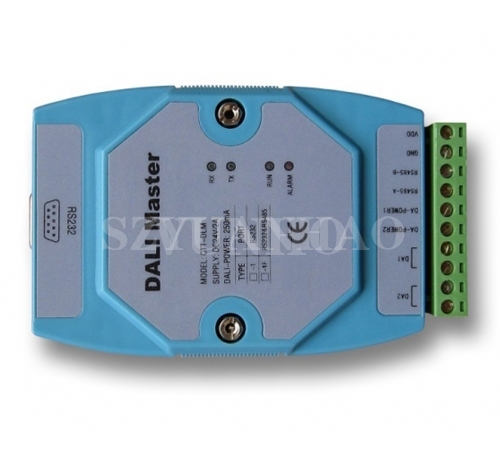

Product：DALI Master,RS232/RS485 to DALI,Easy DALI
Model: CTT-DLM-1F

Input voltage: DC24V/2A(factory is equipped with the power supply)
power consumption: <=10W
DALI power output: 250mA
Operating temperature: 0-70℃
Operating temperature: 10-90%
Weight: 100g
PC software: EasyDALI

EasyDALI system networking products

Function details:

Being the intelligent lighting international standard bus agreement, DALI is widely applied in indoor lighting. DALI bus can be connected with a maximum of 64 devices, including 16 groups and 16 scenes. It also has some function setting parameters which give DALI more application flexibility and meet the demands for different occasions more easily. There must be a DALI bus to set the parameters for DALI lamps, so Shenzhen YuanHao Intelligent Technology Co., Ltd. design the CTT-DLM-1F DALI bus which has EasyDALI software, powerful functions and widely applied in illumination engineering,and supports RS485 extension connection DALI gateway function, able to control more of DALI lamps.

With RS232 communication interface
Support a DALI bus, most allow linking 64 DALI lighting equipment .
supports RS485 extension connection DALI gateway function ,Up to 250 DALI gateway can be connected，Each gateway can connect 64 lights equipment, Most can control 16000 individual lights;
Scan equipments, meet the requirement of automatic address assignment of DALI agreement.
Broadcast equipments, control group or single address
All the parameters of the parameters table of DALI agreement can be read or set.
etting / reading by group;
Addressing function
With DALI POWER individual output interface, more flexible compatibility
Gateway status monitoring function;
With the brightness of the lights and condition monitoring functions;
Have a week cycle sequential control functions.
