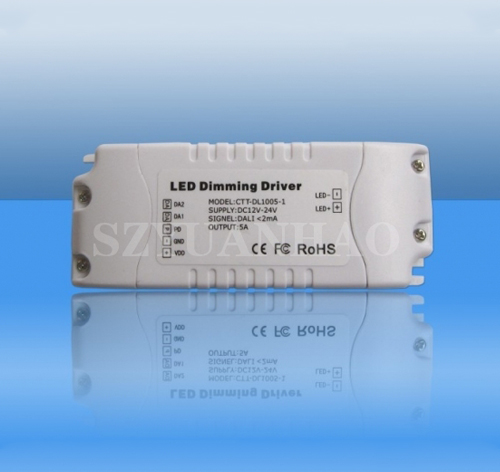

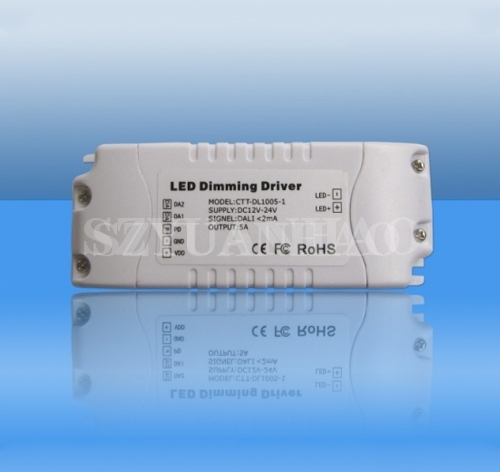

Product：DALI dimming driver 5A
model: CTT-DL1005-1
Supply: DC12V-DC24V
Power consumption:. < = 50 mA (static)
The light signal input, DALI, interface absorptance current < 2 mA
Output max current: 5 A
Address assignment way: by DALI host to be automatic allocation
Working temperature:-20 ℃-75 ℃
Relative humidity: 10-90%
Weight (gross) : 60 grams

ABS plastic shell, with a terminal blocks protection waterproof cover;
Volume to minimize, placed easy installation;
Low voltage operation, safe and reliable.
With all the way independent constant pressure 5 A output driver load choice
Meet the IEC62386 DALI protocol standards; But with any of the DALI agreement with equipment
Hang with a bus control;
Applicable to family, office, hotel, landscape, billboards engineering, etc.

2.DALI LED Dimming Driver table:

Note:Can be cstom-made DALI LED Dimming Driver parameters .
