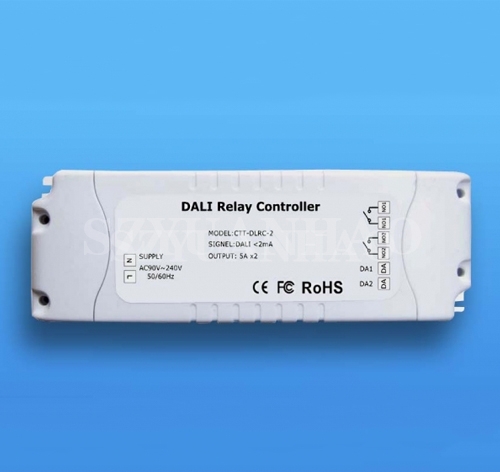

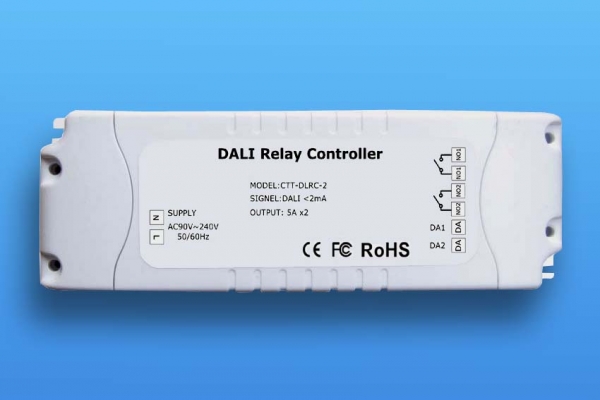

Product：DALI Relay Controller 5Ax2
Model: CTT-DLRC-2
Ø input voltage: AC90 ~ 240 V frequency 50 Hz / 60 Hz
Ø power consumption:. < = 5 W
Ø input signal: DALI
Ø relay contacts maximum current: 5 A
Ø working temperature:-20 ℃-75 ℃
Ø relative temperature: 10-90%
Ø weight: 110 g

Ø ABS plastic shell, with a terminal blocks protection waterproof cover;
Ø volume to minimize, placed easy installation;
Ø IEC62386 DALI agreement with the standard; But with any accord with the DALI agreement with equipment to put up a bus control;
Ø has two Channels 5 A relay switching output
Ø DALI communication interface with isolation protection function
Ø applicable to family, office, hotel, and engineering.
