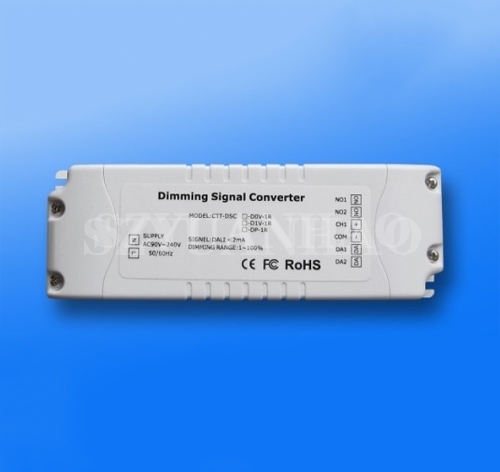

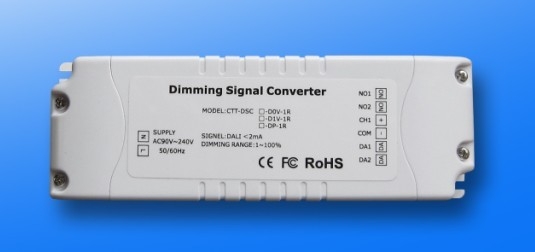

Product：DALI to 0/1-10 V including relay switch

Model:CTT-DSC-D1V-1R

Ø Input voltage: AC90 ~ 240 V 50 Hz ac / 60 Hz

Ø Power consumption:. < = 5 W

Ø Input signal: DALI (accord with IEC62386 DALI in agreement with any accord with standard; DALI agreement with equipment to put up a bus control)

Ø Light level: 255

Ø Dimming range: 0% 100%

Ø Output signal: 0/1-10V (reverse current, 1-10V or 1-10V output can be set)

Ø Relay switch: 5A

Ø Working temperature: 75 ℃, 20 ℃-

Ø Relative temperature: 10 to 90%

Ø Weight: 110 g

The product features:

Ø ABS plastic shell, and with a terminal blocks protection waterproof cover;

Ø Volume to minimize, placed easy installation;

Ø IEC62386 DALI agreement in accord with standard; But with any accord with the DALI agreement with equipment to put up a bus control;

Ø With 1 road 0-10V output and 1 road relay switching output

Ø DALI communication interface with isolation protection function

Ø Applicable to family, office, hotel, and engineering.
